MT-OT-104
MT-OT-104

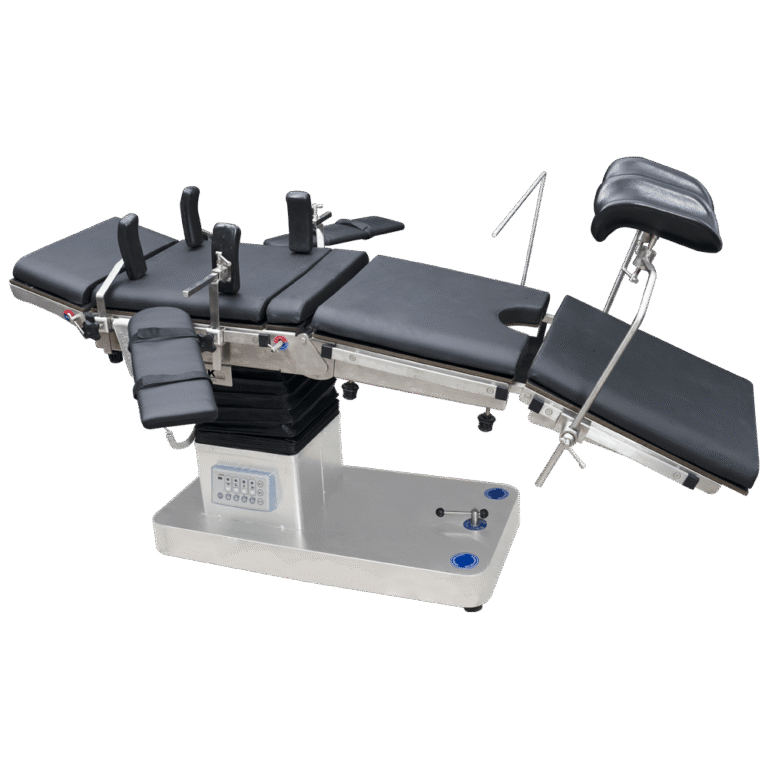

Electric Operating Table
Special Features
- Comprehensive range of functions including height adjustment, lateral tilt, Trendelenburg, flex-reflex, and longitudinal slide for precise positioning and patient comfort.
- Split leg section.
- Stainless steel fittings.
- Detachable head, leg & pelvic section.
- In-built kidney bridge.
- Five sectional radio–translucent top.
- Base & cover made of attractive, easy-to-clean stainless steel.
- Sophisticated mechanics provide smooth, stepless articulation of the table top for precise patient positioning.
- Standby battery back-up with recharging circuit.
Table Positions
- Height Adjustment – Up & Down
- Lateral Tilt – Left & Right
- Trendelenburg & Reverse Trendelenburg
- Flex & Reflex Position
- Top Sliding
- Zero Position
Technical Specification
| Length of Table | 1900 mm |
|---|---|
| Width of Table Top | 542 mm |
| Height (without Mattress) Min | 750 mm |
| Height (without Mattress) Max | 1000 mm |
| Trendelenburg | 25° |
| Reverse Trendelenburg | 25° |
| Lateral Tilt | +20° |
| Back Section | +60° |
| Head Section | +60° |
| Leg Section | 0° – 90° |
| Top Slide Range | 250 mm |
| Floor Locking System | Manual |
